Shimano Stella and Game Type J Light Kingfish and Snapper Jigging Combo

Looking for a high end jigging combo look no further. The Shimano Stella and Game Type J light kingfish and snapper jigging combo is the perfect combo for chasing those reel species in jig or dropping down a bait. The Rod being the game type J S603; measuring 6ft and pe3 (30lb) rating. The rod can use jigs rated from 60-180g. The reel Shimano Stella SWC 6000pg is shimano's high end reel where the name speaks for itself; with a gear ratio of 4.6:1 ratio this is perfect for deep water fishing and bringing larger fish up from the depths. The line is Shimano's new Grappler pe line 3.0 59lb 300m multi which has a great breaking strain for the pe rating. The line is known for being abrasive resistance and for its knot strength.

Spare Spools also available

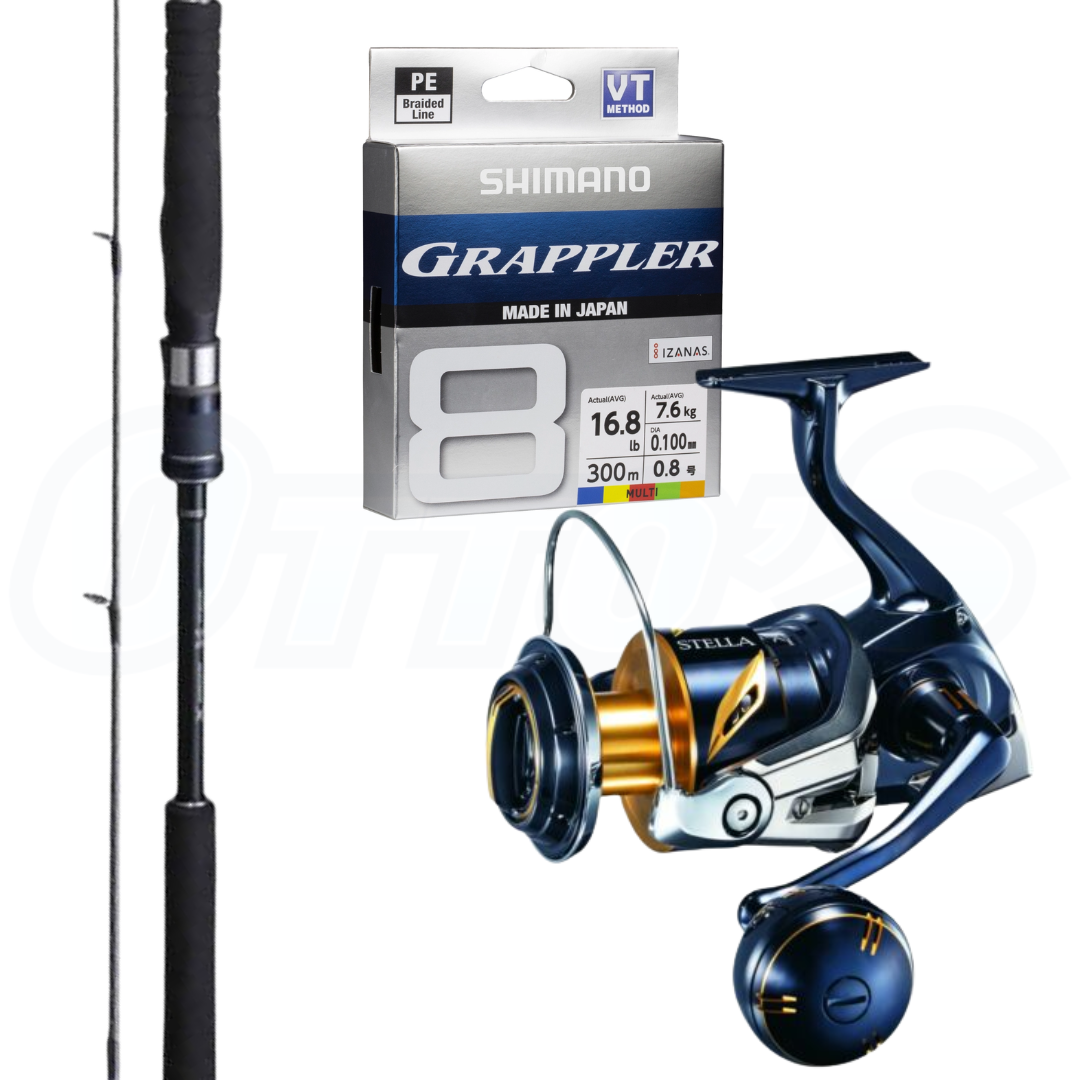

Combo consists of:

• Shimano Stella SWC 6000PG
• Shimano Game Type J S603 PE 3
• Shimano Grappler pe 3.0 59lb 300m multi

The Reel

SHIMANO STELLA SWC 2020 SPINNING FISHING REEL

Shimano Stella SWC Spinning Fishing Reels Full Range Here

The Stella SW represents the pinnacle of innovation for Shimano reel technology and fish-fighting performance. For 2019, this flagship series has been upgraded and released in 8000, 10000 and 14000 sizes. For increased power and enhanced durability, this series features a range of upgrades. Infinity Drive has been incorporated for light and powerful winding and the upgraded Heatsink Drag (1000 and 14000 sizes) provides superior drag performance under extreme heat.

A waterproof rating of IPX8 is achieved through X-Protect and X-Shield with the aluminium Hagane Body acting as a rigid and super tough outer shell.  Now special X-Protect rubber gaskets have been incorporated into the line roller, making this mechanism ten times more durable than the previous model. A new and improved compact rotor design features in the 8000 sizes and has made the reel 50g lighter than the comparable Stella SW models. The HG models are designed for both casting and jigging, whereas PG is geared for jigging applications and XG for saltwater casting. Available in stores March 2019.

NEW FEATURE UPGRADES

INFINTY DRIVE

The new Stella SW employs 'Infinity Drive’ where the pinion gear inner does not make contact with the main shaft, as a high-sliding bushing supports the main shaft. With this new structure, sliding resistance of the main shaft is drastically reduced.

In addition to this, a special skidding coating on the main shaft helps to further reduce sliding resistance. InfinityDrive cuts handle rotation torque by about 30 per cent in comparison to the conventional system, and makes the reel more powerful.

HEATSINK DRAG

The ‘Heat Sink Panel’, where the heat generated by drag is released, stops any decrease in drag performance, due to thermal sagging, by around 50 per cent.

The ‘Insulation Sheet’, which blocks heat transfer to the spool, prevents spool temperatures from increasing by around 30 per cent. The evolution of the new drag system is easier on the line and more stable than ever. Featured in models 10000, 14000.

X-PROTECT

X-Protect was developed for stopper bearing protection in the previous model and provided high-level waterproofing. The new Stella SW employs X-Protect for its line roller as well and further improves its waterproofing performance.

The new structure protects bearings inside the line roller from the harsh saltwater environment, and bearing durability is ten times greater than conventional designs. As a result of comparison tests by Shimano.

HAGANE GEAR

The Hagane Gear is produced by applying approximately 200 tons of pressure to the raw metal through unique technology called Precision Cold Forging.

Delivered with micron accuracy, no cutting work is involved. Hard and tough, the Hagane Gear has high durability and delivers smooth winding.

HAGANE BODY

The Hagane Body chassis is made of highly rigid aluminium alloy. It eliminates flex, warp and distortion of the reel, and protects the engagement of gears inside. This allows for smoother winding.

X-RIGID ROTOR

By verifying the thickness of the aluminium alloy rotor body through detailed 3D analysis, strong rigidity, high durability and excellent rotational balance is created. Thanks to its strong rigidity, the X-Rigid Rotor contributes to improved effectiveness of various parts such as the drag.

SILENT DRIVE

From the basic body design through to the most intricate parts of the drive train including the drive gear, worm shaft, worm shaft pin and worm shaft gear, every piece has been carefully reviewed.

Consequently, the smallest clearance gaps and wobbles have been eliminated to the highest tolerances. As a result, a new generation of silky smooth winding performance and pristine silence has been achieved.

X-SHIP

In addition to an enlarged drive gear, optimum positioning of the pinion and drive gears, and two-point support of the pinion gear whose ends are supported by bearings, all these mechanisms deliver robust gear engagement.

The X-Ship system permits smooth winding, even under heavy loads.

X-TOUGH DRAG | RIGID SUPPORT DRAG

X-Tough Drag: Each drag washer is composed of metal or carbon, which have high resistance to friction. Supporting the spool from both the top and bottom means highly durable and stable drag performance.

Rigid Support Drag:  Supporting the spool at two-points of the main shaft and bearing inside the spool eliminates spool wobble and delivers stable, smooth drag function.

The New Stella 10000, 8000 and 14000 sizes are sure to prove themselves as good as their predecessors.

SPECIFICATIONS

ITEM CODE	DESCRIPTION	BEARINGS	MAX DRAG (KG)	GEAR RATIO	RETRIEVE PER CRANK (CM)	POWERPRO BRAID (LB/YDS)	WEIGHT (G)
STLSW6000PGC	STELLA SWC 6000PG	13+1	13	4.6:1	83	30/290	425



The rod

SHIMANO 20 GAME TYPE J SPINNING FISHING RODS

Shimano’s new Game Type J series are the latest JDM jigging rods to hit Australian shores. With seven models, this impressive new series feature improved blank technology and offer five spin and two overhead’s ranging from PE2.5 to PE6 line ratings. Improving on the original 2015 series, the 2020 series features Hi-Power X and now Shimano’s patented Spiral X Core carbon construction to reduce weight and increase strength. Paired with Fuji K Stainless SiC frames, a mix of Ci4+ or Fuji reel seats and an EVA split butt configuration for comfort and lightness, the Game Type J range is purpose-built to be incredibly balanced. The 2-piece butt join construction has been engineered to maximise performance and deliver a parabolic bend to ensure comfort and performance for Anglers while exerting maximum force on fish.

MODEL	Length (m)	Length (Feet)	LINE RATING	JIG WEIGHT	GUIDES
20GTJS603	1.83	6'	MAX 3	MAX 180g	FUJI K STAINLESS SiC
